Dinosaur Phylogenetics

Phylogenetics

Phylogenetics is the study of evolutionary relationships among organisms. It arranges organisms into groups called clades based on common ancestry, as indicated by shared derived characteristics (synapomorphies). This is the prevailing method of biological classification now, despite the prominence of the Linnean classification system.

An Aside on the Linnaen Classification System

The Linnaen classification system is commonly taught in grade schools - it is the system that organizes all of life into ranks of Domain, Kingdom, Phylum, Class, Order, Family, Genus, and Species. While it forms a basis for classification of species and genera, it is an outdated system with two key problems. First, it is based on physical appearance, rather than overall similarity. Physical traits can be useful in recognizing groups, but not in defining them (consider bats and birds - they both have wings, but their wings evolved independently of each other). Secondly, because the ranks in the Linnaen system are fixed, it assumes that nature is static and that animal characteristics do not change through time. If you define an animal by the possession of a feature, then that feature is not allowed to change through time; if it did, then that animal would become part of another classification.

We did, however, retain the concept and nomenclature of the genus and the species. A genus is a group broader than species that groups closely-related species who share a common ancestor. A species is the most specific unit of classifications for animals that can interbreed. The formal name of each species consists of two words, italicized, where the first is the genus and the second is the species (e.g., Spinosaurus mirabilis).

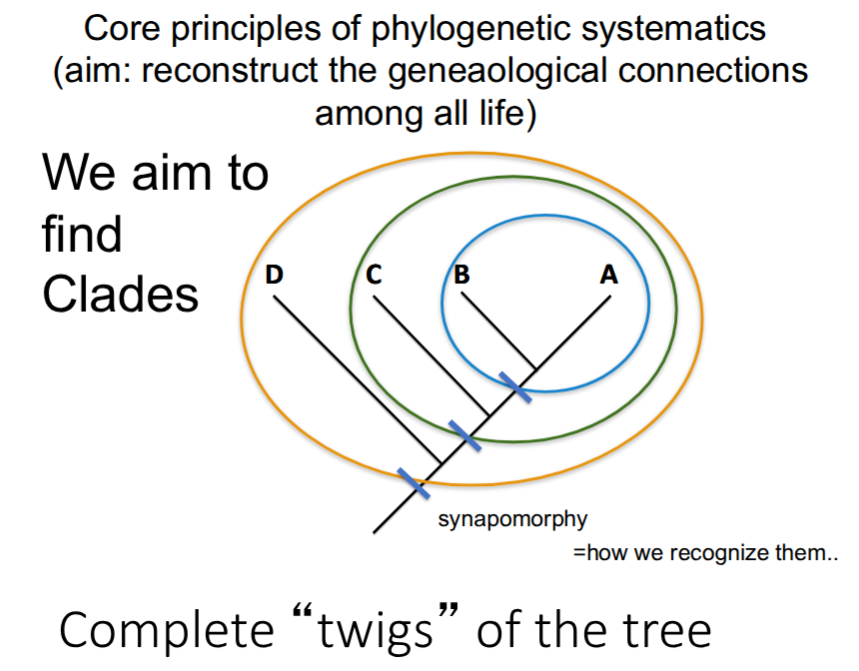

Phylogenetics centers around evolutionary relationships - as in, shared ancestors - rather than plain classification (as in the Linnaen system). These evolutionary relationships are established through the identification of synapomorphies, which are shared, derived character traits. More concretely, a synapomorphy is a trait that evolved in the most recent common ancestor of a group and that is henceforth passed on to its descendants. It is these synapomorphies that are used to define monophyletic groups, or clades (a section of the phylogeny that includes an ancestor and all of its descendants) within the tree of all life. For example, the clade Vertebrata can be distinguished from its ancestors in the clade Chordata by the evolution of a vertebral column and a complete brain case. Note, however, that vertebrates are still chordates - vertebrates evolved and diverged from a common ancestor within Chordata. This applies to phylogenetics as a whole - the “directory” of each species in the tree of life is comprised of all its ancestors.

More Terminology

In phylogenetics, the terms apomorphy and plesiomorphy are commonly used in describing character states.

• Plesiomorphy: an ancestral trait; a trait inherited from a distant common ancestor that is shared by members of a clade, but not unique to them (e.g., a backbone in reptiles)

• Apomorphy: a derived trait; a character that has evolved from a plesiomorphic character. Consists of the following two types:

  • Synapomorphy: (defined above) a shared, derived character that defines a clade

  • Autapomorphy: a unique, derived character found only in one taxon (e.g., speech in humans)

Dinosaurs in the Tree of Life

Phylogenetically, dinosaurs are classified as so: Chordata > Vertebrata > Gnathostomata > Osteichthyes > Sarcoptrygii > Tetrapoda > Amniota > Sauria > (Archosauriformes) > Archosauria > Ornithodira > (Dinosauriformes) > Dinosauria. Recall that each clade is defined by synapomorphies that distinguish it from its parent node (though its placement within the parent group can be established through plesiomorphies).

The following sections will break down each clade leading to Dinosauria, outlining the key synapomorphies that define them, as well as their following lineages.

Chordata

Key synapomorphies: a notochord (an elastic, rod-like structure).

Lineages: Vertebrata, Tunicata (tunicates), Cephalochordata (lancelets)

Vertebrata

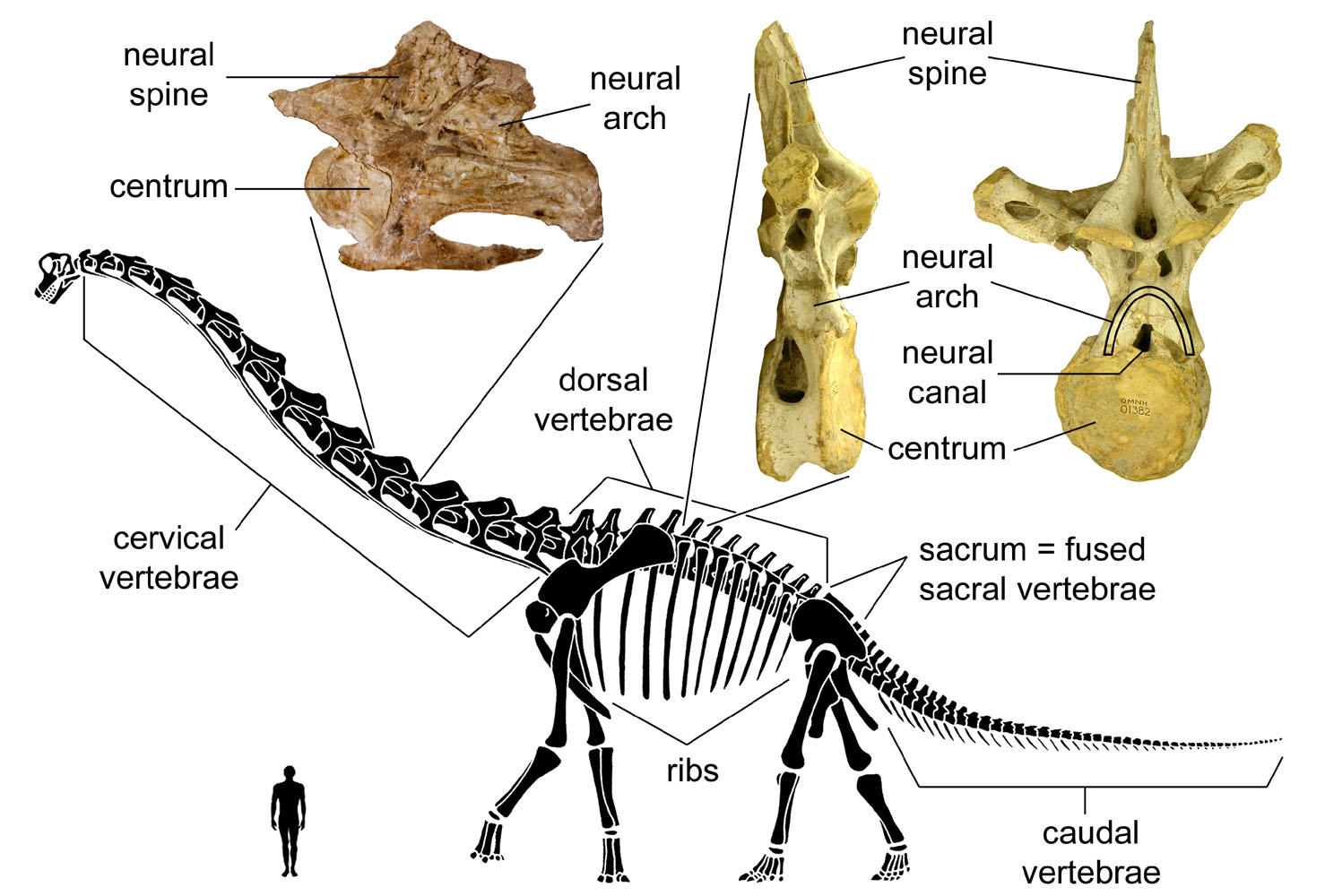

Key synapomorphies: a vertebral column, either bony or cartilaginous, and a complete brain case.

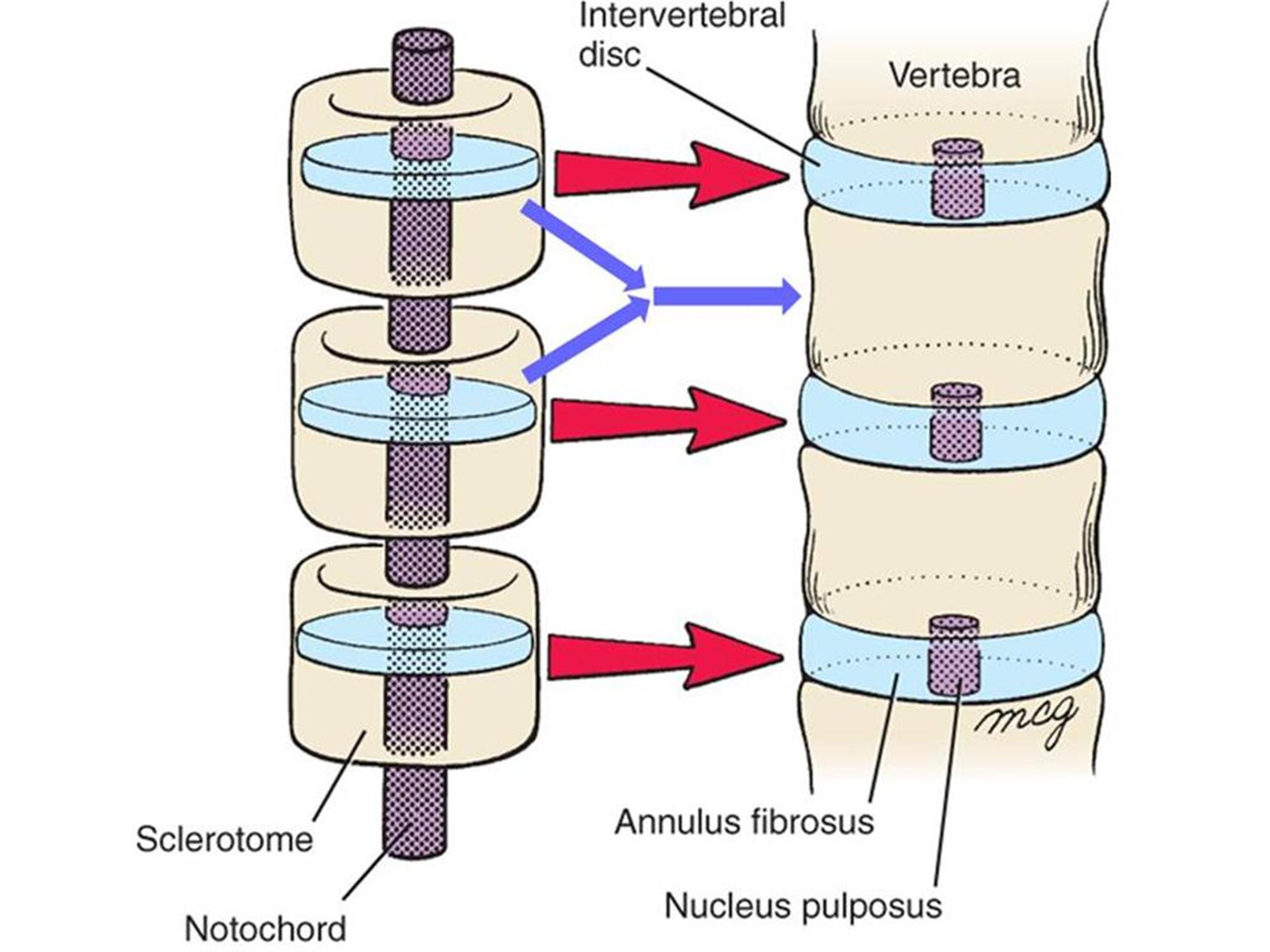

• In vertebrates, the notochord is an embryonic structure that disintegrates as the vertebrae develop.

Lineages: Gnathostomata

Gnathostomata

Gnathostomes are jawed vertebrates. Placoderms, which are large, prehistoric jawed fish, are gnathostomes.

Key synapomorphies: jaws

Lineages: Osteichthyes (bony fish), Chondrichthyes (cartilaginous fish)

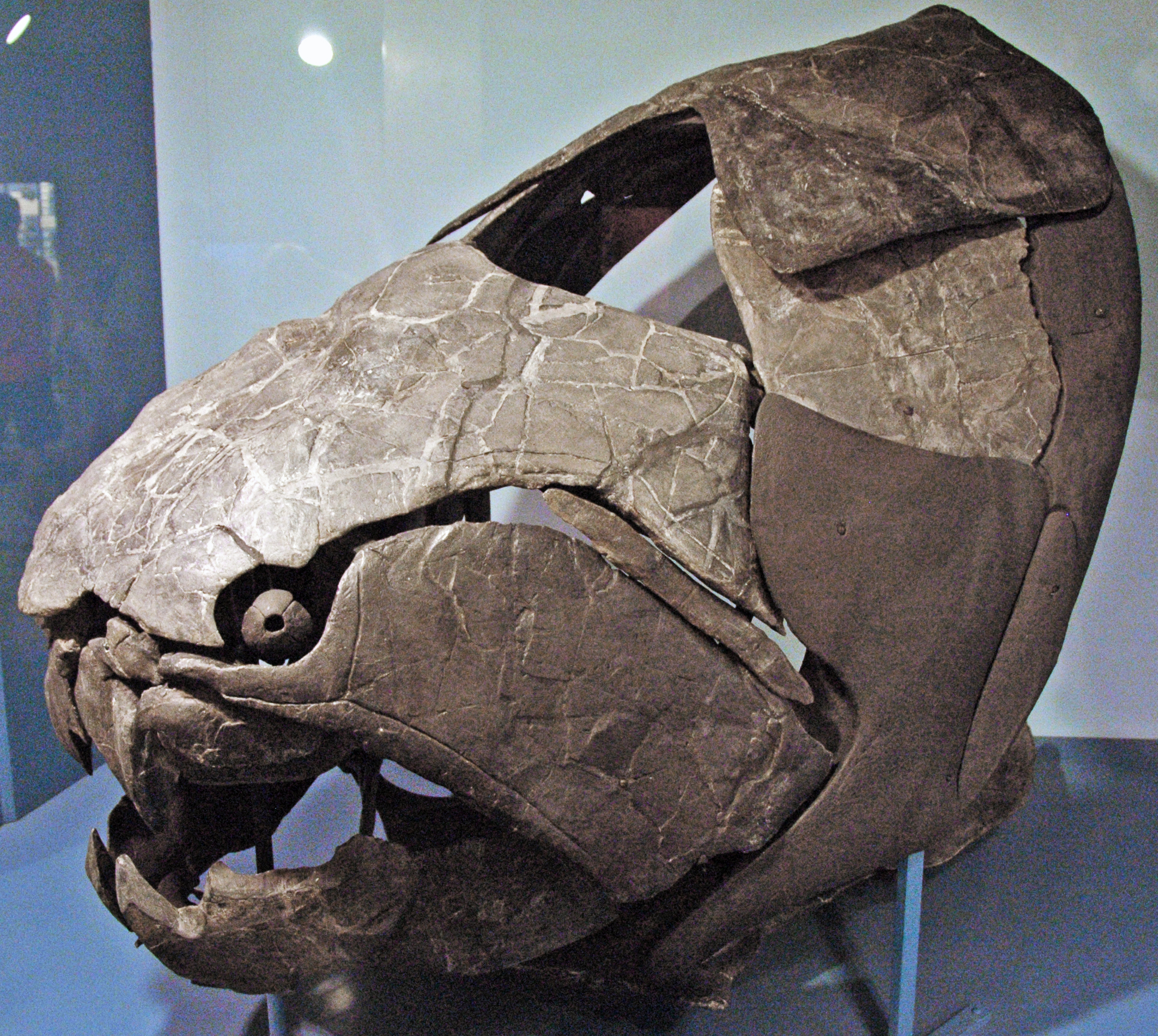

Dunkleosteus, a genus of Placoderms, which are large, armored, jawed fish.

Osteichthyes (bony fish)

Osteichthyans, or more commonly known as the bony fish, have an endoskeleton comprised mostly of bone tissue, as opposed to cartilage (as in Chondrichthyes, of which sharks are an example).

Key synapomorphies: a bony vertebral column

Lineages: Sarcoptrygii (lobe-finned fish), Actinoptrygii (ray-finned fish)

Sarcoptrygii (lobe-finned fish)

Differs from Actinoptrygii, which includes most fish, in that actinoptrygians only have bony spines supporting their fins.

Key synapomorphies: lobe fins that are supported by differentiated limb bones

Lineages: Tetrapoda, Coelocanth, Lungfish

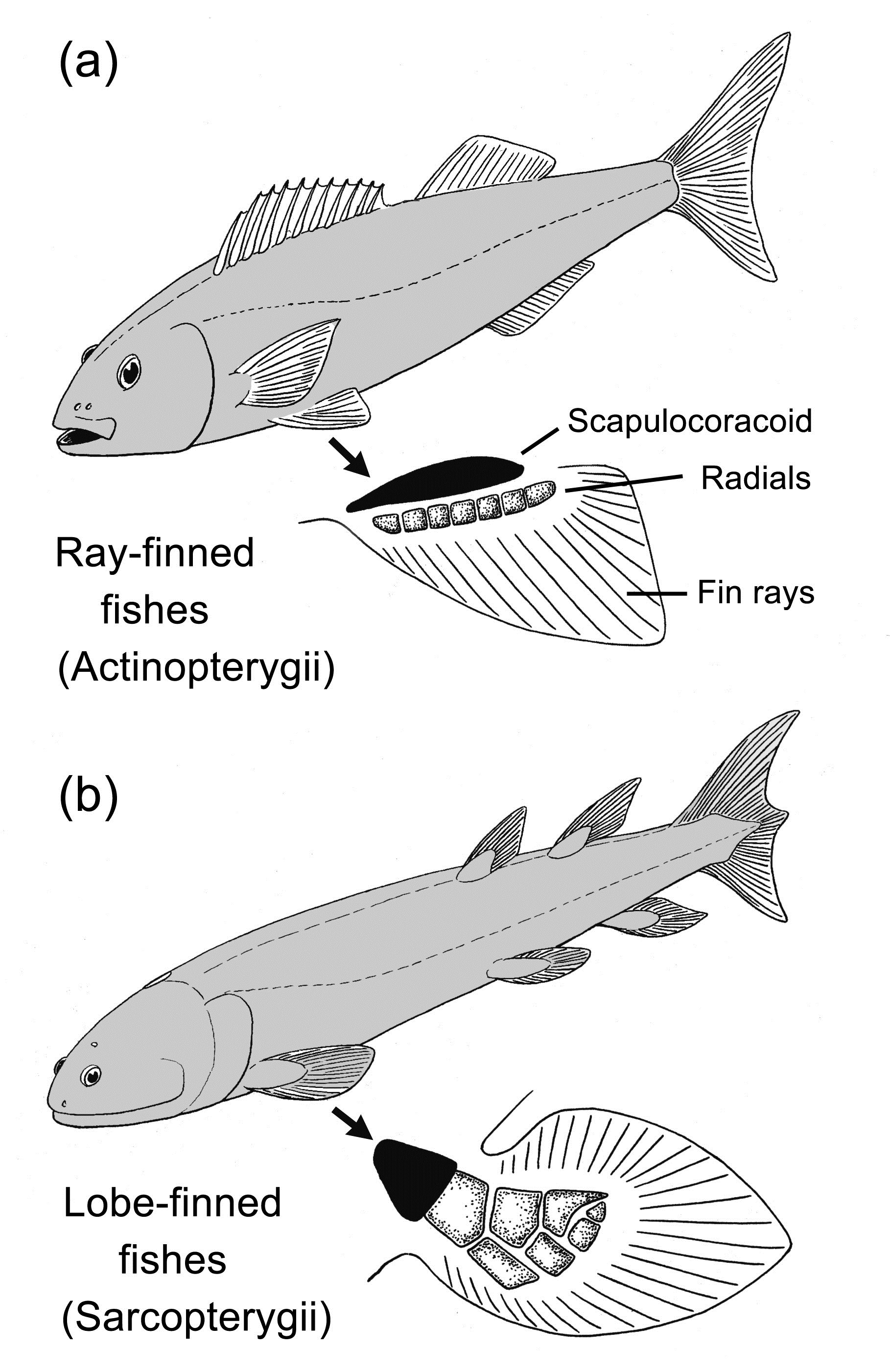

Ray-finned vs lobe-finned fish

Tetrapoda

Tetrapoda includes all limbed vertebrates, i.e., all extinct and extant amphibians and amniotes, with the latter in turn evolving into two major clades - the saurians (reptiles, including dinosaurs and therefore birds) and synapsids (including mammals).

Key synapomorphies: limbs with digits

Lineages: Amniota

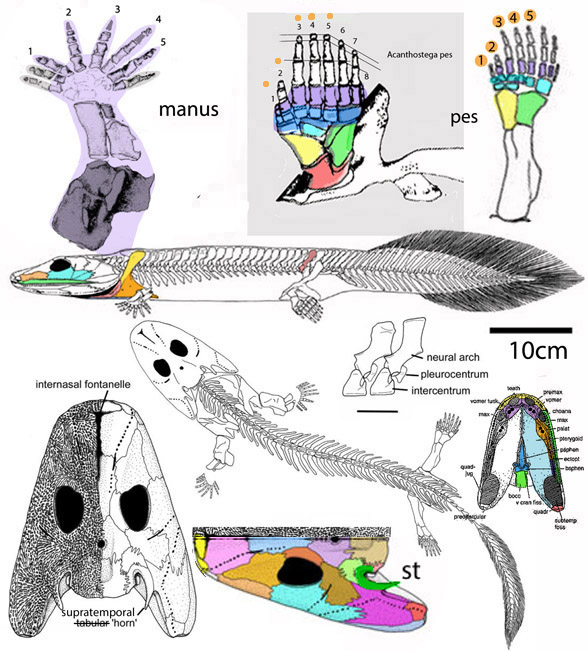

Acanthostega, one of the earliest known tetrapods. It was primarily aquatic with well-developed limbs and gills.

Tiktaalik, not quite considered a tetrapod but a “fishapod,” representing the transition from fish to tetrapods. While it had a neck and primitive wrists, it had fins rather than digits as in traditional tetrapods.

Amniota

Key synapomorphies: amniotic egg with 3 membranes (the amnion, allantois, and chorion)

Lineages: Sauria, Synapsida

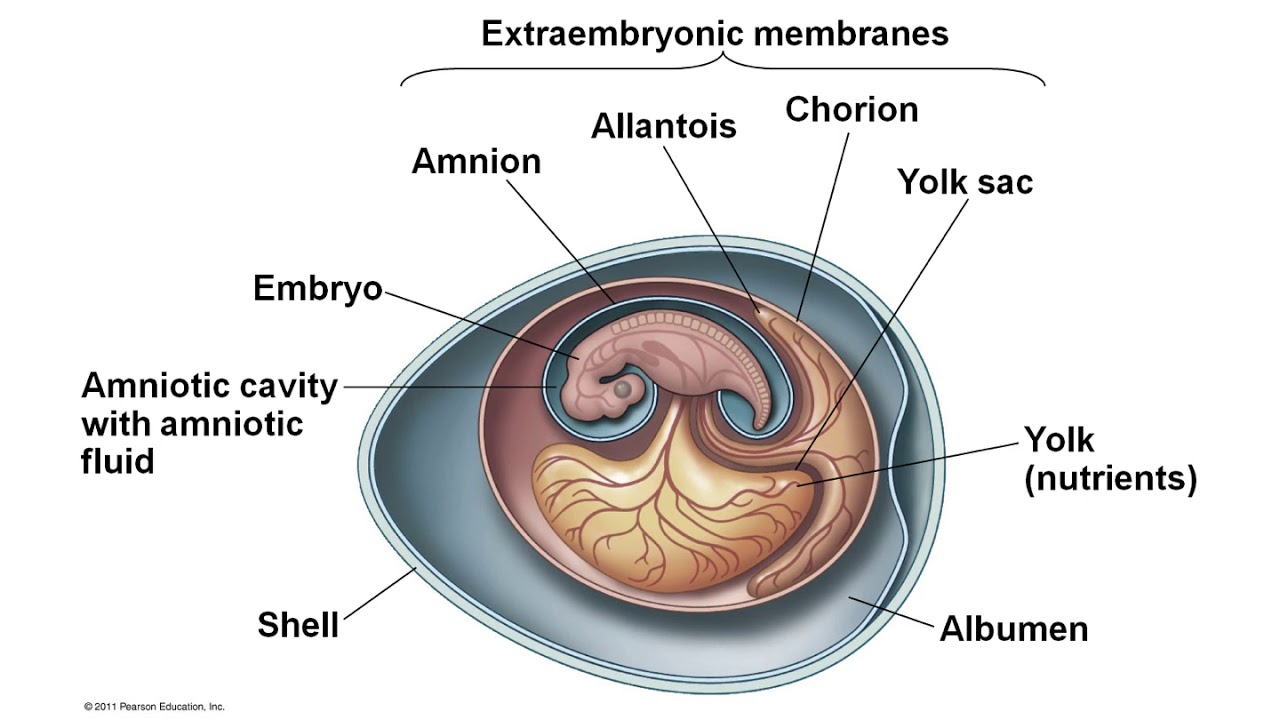

An amniotic egg with three membranes.

Sauria

Sauria is essentially the crown group of reptiles.

Key synapomorphies: 2 temporal fenestrae - both the infratemporal and the supratemporal fenestra (as opposed to synapsids, who only have the infratemporal fenestra)

Lineages: Archosauriformes, Lepidosauria (lizards and snakes), Testudines (turtles)

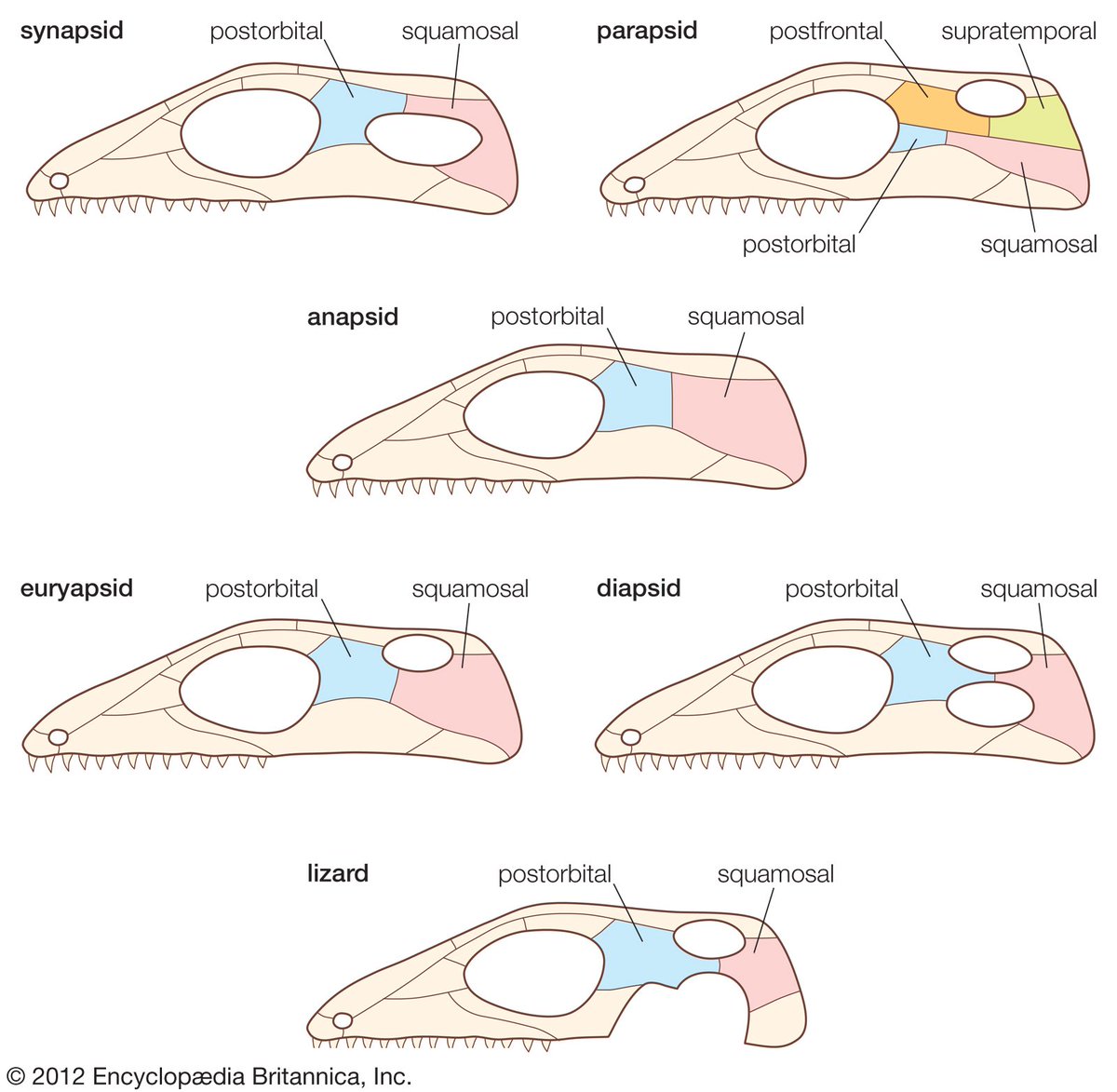

Sauria is a crown clade within Diapsida. Diapsids (and hence saurians) have two temporal fenestrae, distinguishing them from synapsids, who only have one.

Archosauriformes

Archosauriformes is the clade of reptiles encompassing archosaurs and their close relatives.

Key synapomorphies: antorbital fenestra, madibular fenestra, socketed teeth, symmetrical footh with the third toe longest

Lineages: Archosauria

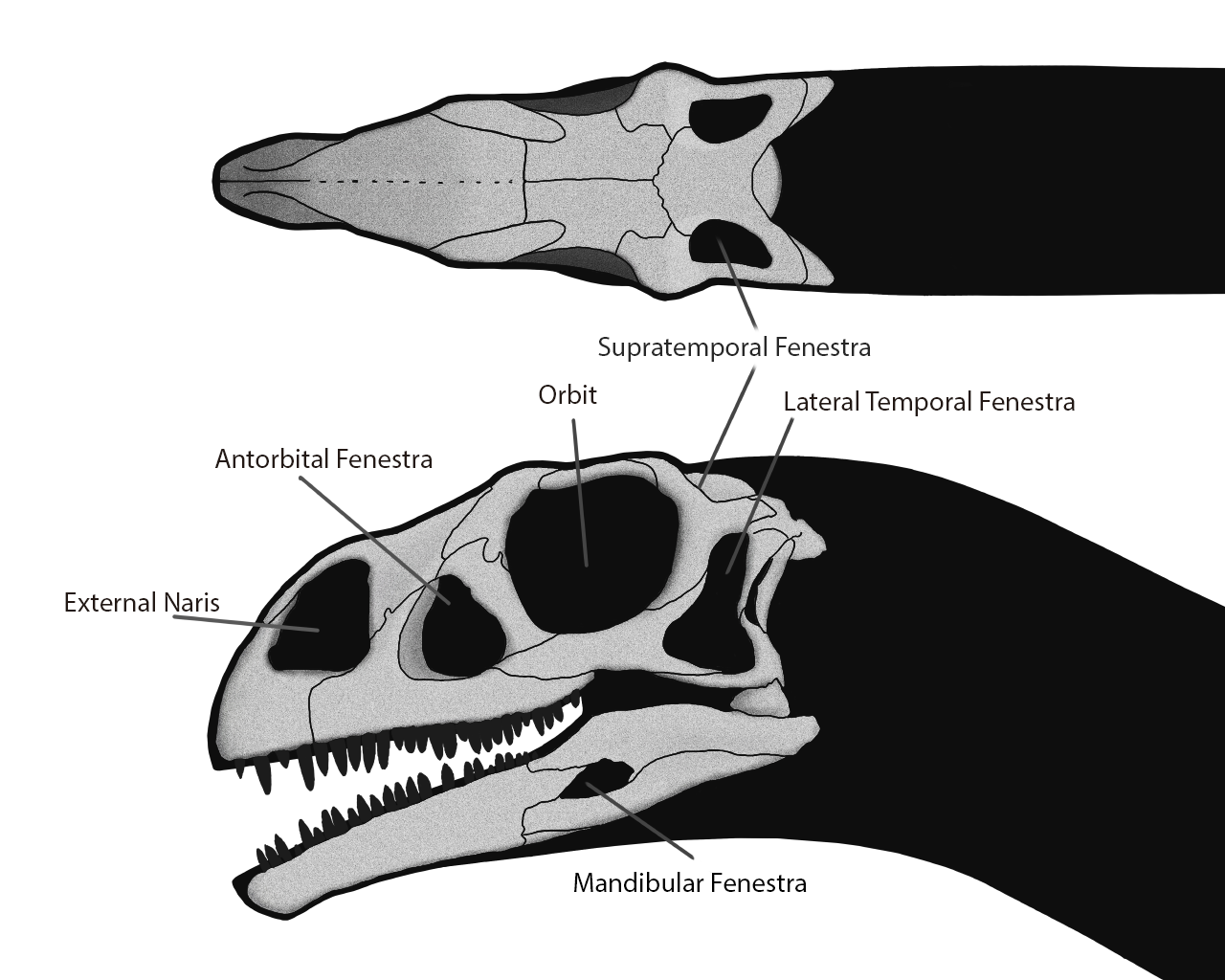

Fenestrae in archosauriformes (and hence archosaurs). The two temporal fenestae are a synapomorphy of reptiles (saurians), while the antorbital fenestra and the mandibular fenestra are synapomorphies of aarchosauriformes.

Erythrosuchus, an archosauriform from the Early to Middle Triassic. Art credit

Archosauria

Archosauria includes the most recent common ancestor of bids and crocodilians, and all their descendants. The Archosaur Revolution in the Triassic saw reptiles adopt new ways of locomotion and breathing, setting the scene for the rise of dinosaurs. Specifically, archosaurs had upright stances (as opposed to a sprawling stance) that allowed for gait independent of breathing, and a 4-chambered heart that allowed for higher sustained metabolic rates.

Key synapomorphies: more upright stance, acetabular crest, 4-chambered heart, parental care. * Also, all the Archosauriformes synapomorphies are also unique to Archosauria relative to all other reptiles, but arose earlier in Archosauriformes.

Lineages: Ornithodira, Pseudosuchia (crocodile-line archosaurs - archosaurs more closely-related to crocodiles than to birds)

Crocodiles are members of Pseudosuchia, contained in Archosauria. Archosaurs are upright, meaning that their limbs can be pulled under their body. While modern crocodylians are often seen sprawled out while sedentary, they are upright animals.

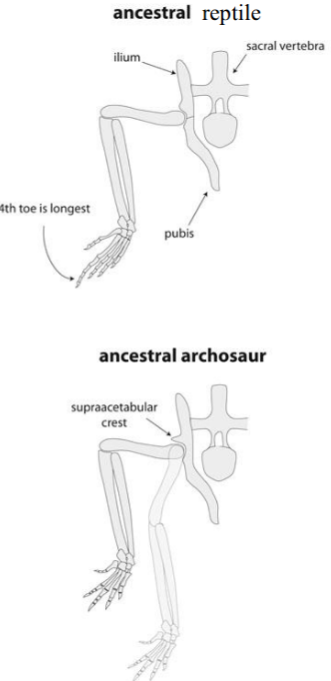

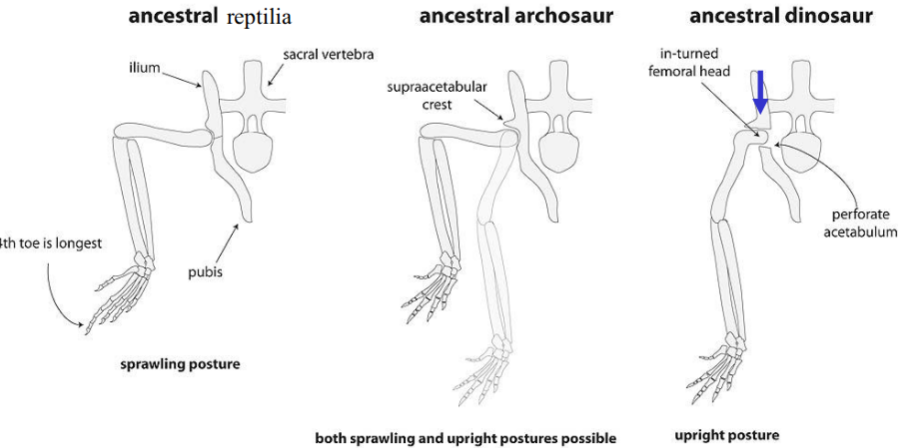

A key synapomorphy of archosaurs is a supra-acetabular crest to aid in locomotion - it braces the femur when in upright orientation.

Ornithodira

Ornithodira, also called Avemetatarsalia, is the clade containing all archosaurs more closely related to birds than to crocodiles.

Key synapomorphies: are subtle and continue to change

• However, there is a key difference between ornithodiran and pseudosuchian ankles. Pseudosuchians have a crurotarsan ankle that allows for an upright, semi-erect “high walk,” whereas ornithodirans have a mesotarsal ankle that limits motion to a single plane, which allows for a more upright, parasagittal (limbs directly under the body) gait that is optimized for speed and stability.

Lineages: Dinosauromorpha, Pterosauromorpha (> Pterosauria)

The ankle of ornithodirans (right) supports a parasagittal gait that is optimized for speed, stability, and bipedalism.

Dinosauromorpha

Dinosauromorpha first appeared in the Middle Triassic, and contains dinosaurs and all its close relatives.

Key synapomorphies: first three fingers of hand are the longest, S-shaped neck

Lineages: Dinosauria

Silesaurus, a dinosauromorph from the Late Triassic.

Dinosauria

Dinosaurs! Dinosauria is defined as the most recent common ancestor of ornithischians and birds, and all their descendants. They first appeared in the Middle or early Late Triassic. Within Dinosauria, there are two main branches of dinosaurs - namely the ornithischians and the saurischians.

Key synapomorphies: opposable thumb, perforate acetabulum, sharply inturned femoral head, crest on humerus, faster growth rates

Lineages: Ornithischia, Saurischia

A perforate acetabulum is a defining feature of dinosaurs, where the hip socket is an open hole rather than a closed cup, allowing the femur to insert directly. This pelvic structure dictates an upright, parasagittal posture, enabling efficient movement.

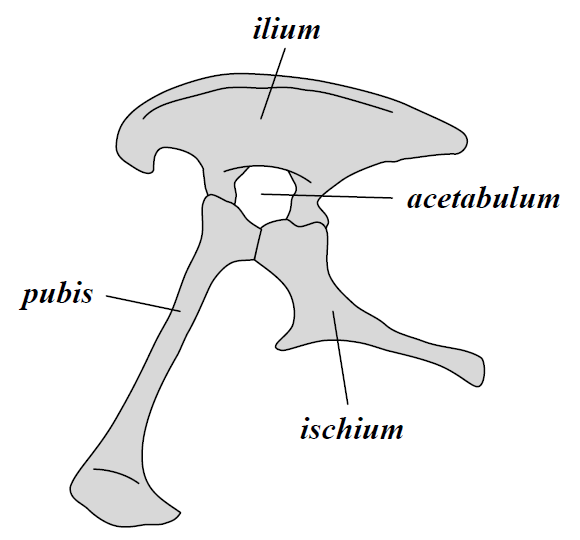

A dinosaur (saurischian) pelvis, labelled.

---

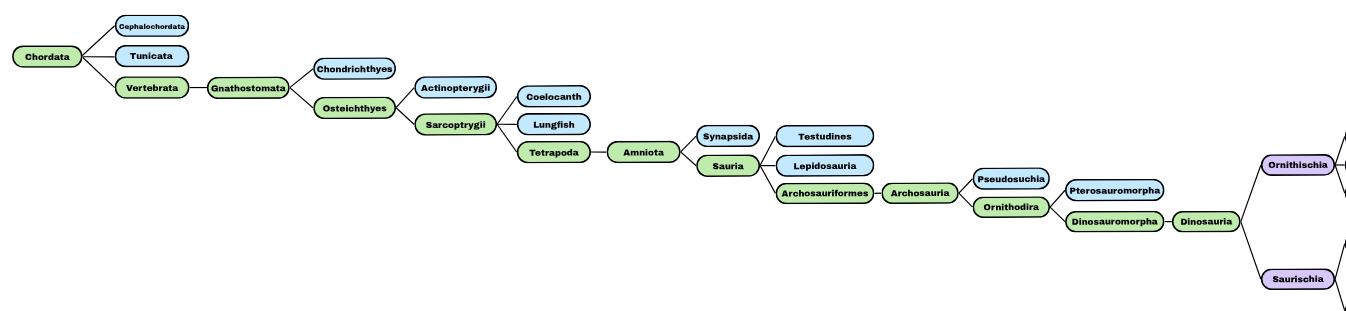

Here is where we are in the phylogeny.
